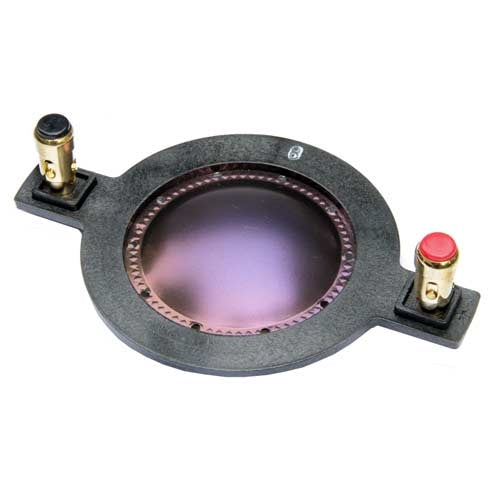

8 ohm replacement diaphragm to suit Presonus SLS328ai, SLS312ai and SLS315ai. This diaphragm is also the replacement for a wide range of compression drivers used by other loudspeaker manufacturers, check compatibility before ordering.
The diaphragm assembly is a 1.75 inch (44.4mm) diameter commercially pure titanium design and utilizes very high temperature adhesive systems and precision manufacturing to insure high power handling and reliability. The construction yields a full 50 watts of power handling capacity. The larger diaphragm diameter (1.75 inch) provides superior mid band response and is an excellent choice for medium power professional sound reinforcement systems.
Voice coil 1.75" (44mm)
Outside diameter of main diaphragm body 70mm
Distance between centres of contact terminals 91mm
Overall width at widest point 109mm
Width of contact lugs 15mm
