Basic Features
-

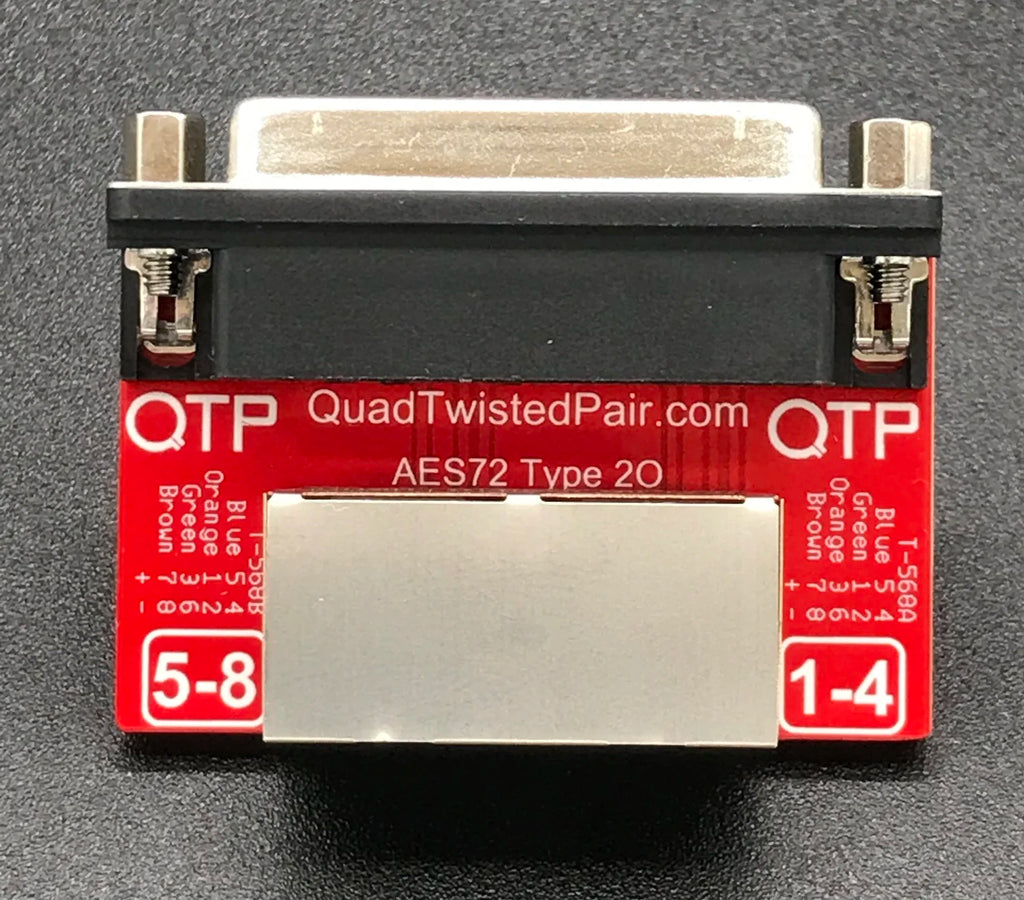

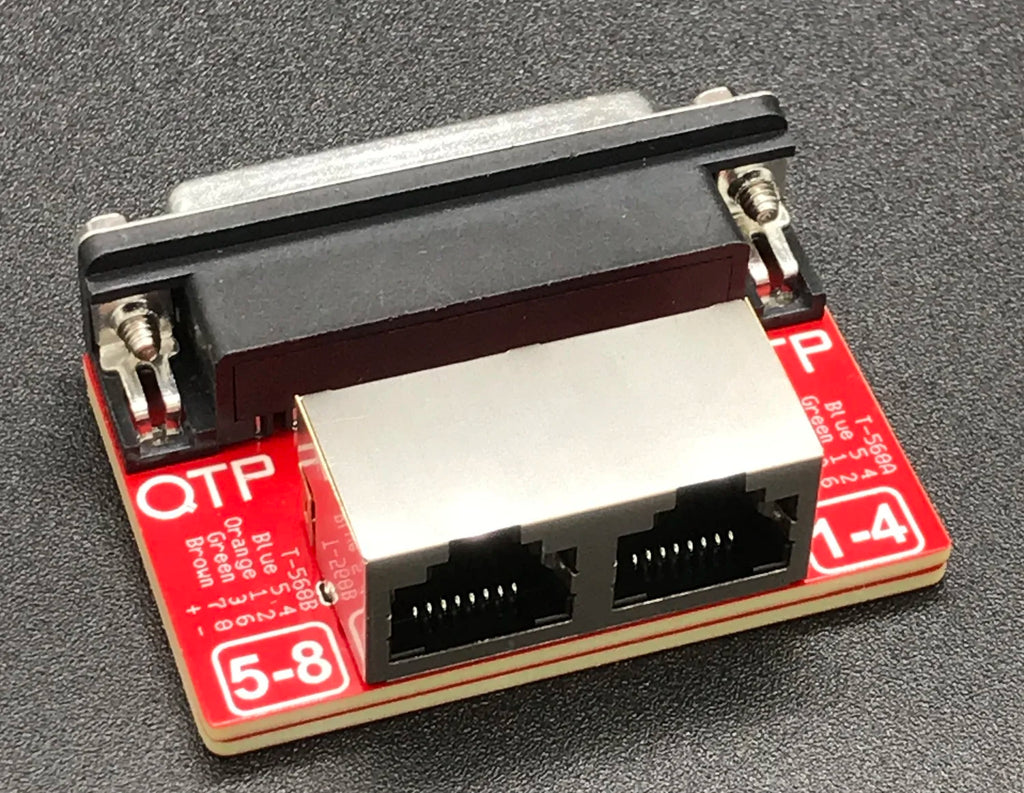

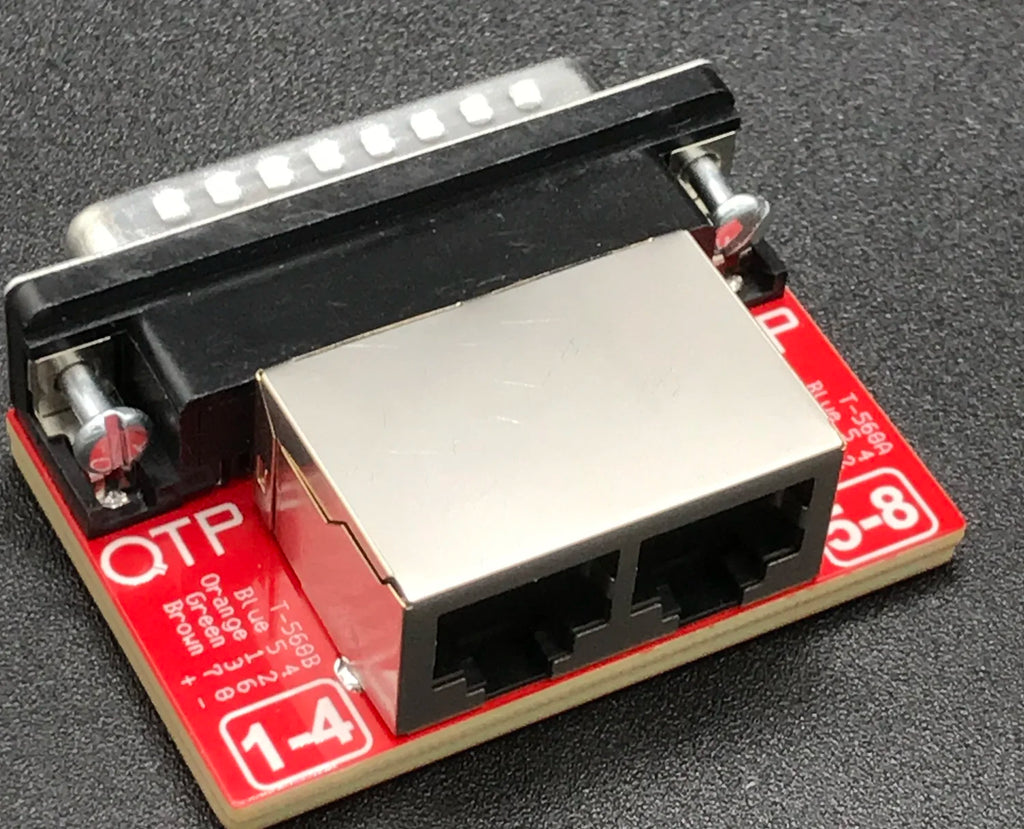

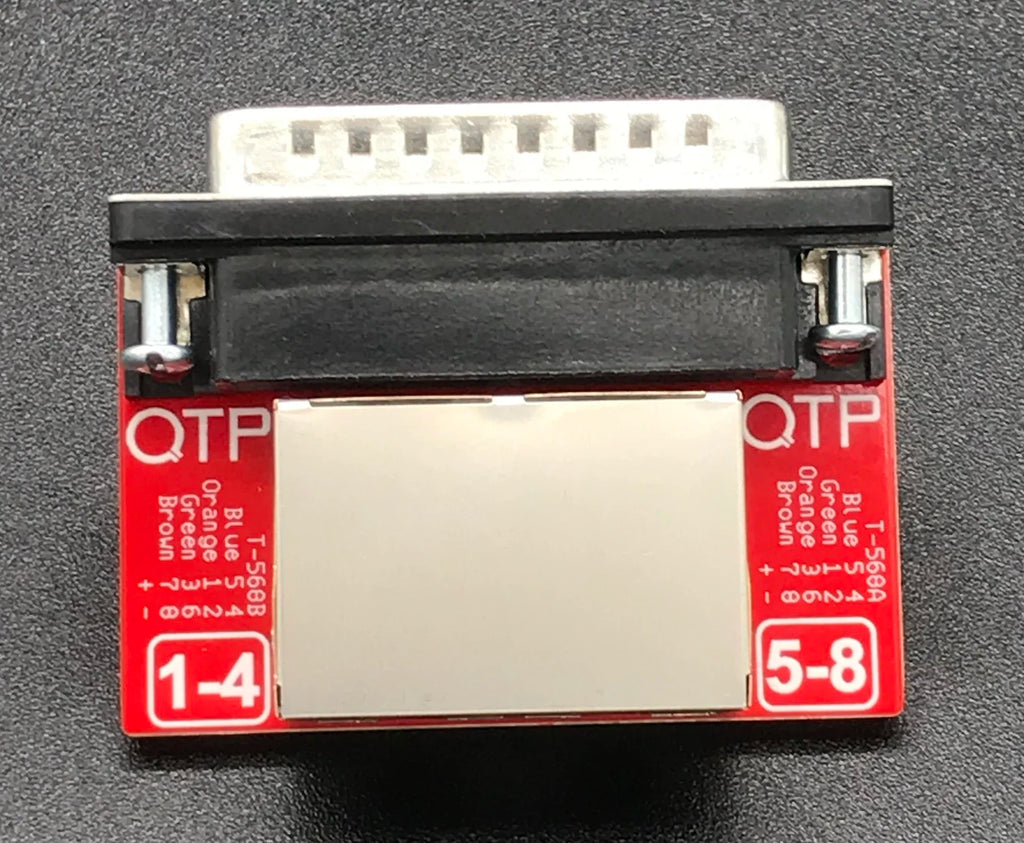

Converts AES59 (DSUB) to AES72 Type-2O
-
Converts 8 balanced channels of audio between a DB25 connector to 2x RJ45 connectors
-
Allows up to 4 channels of Balanced audio to be carried along a single Cat-5e/6 cable,
-
Allows up to 4 pairs of AES/EBU audio to be carried along a single Cat-5e/6 cable,
-
This adapter connects the Shield connections when used with Shielded Cat5e/6.
-
Use of shielded cable allows use of Phantom Power with Microphones.
-
Reduces installation costs by eliminating the need for traditional multipair snake cabling.
-

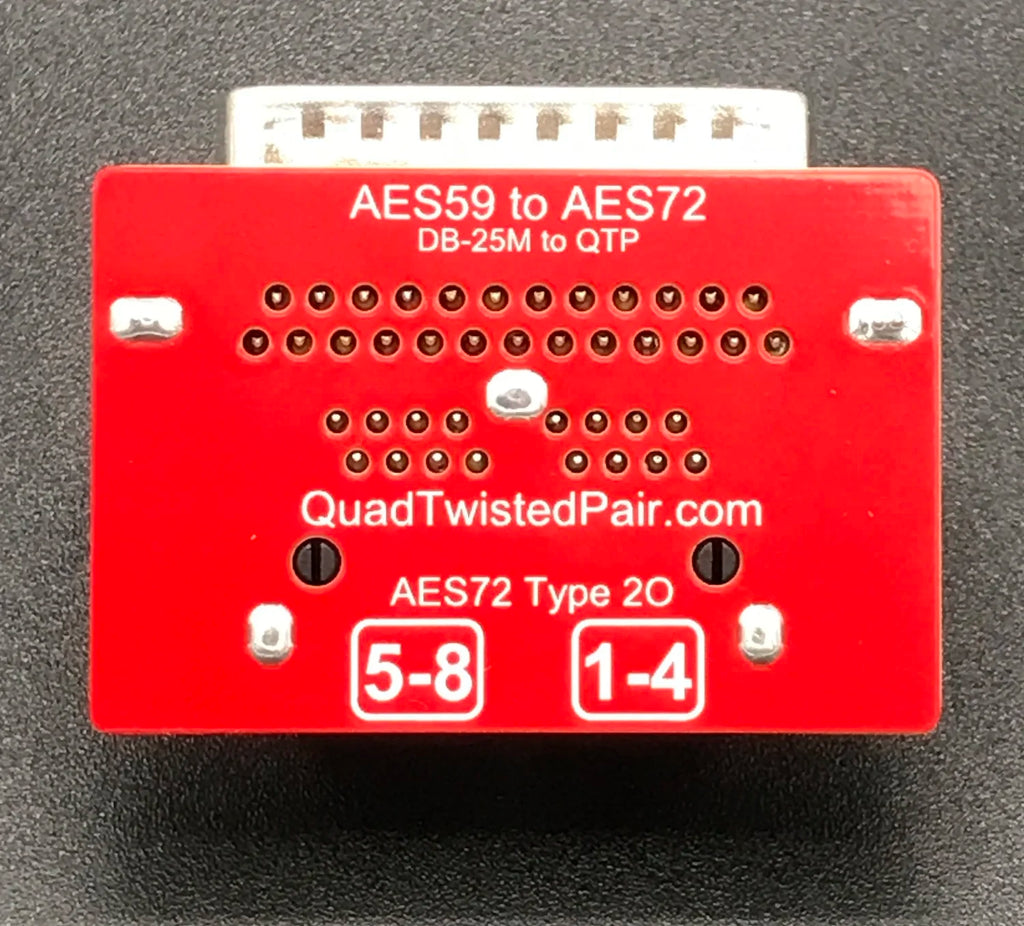

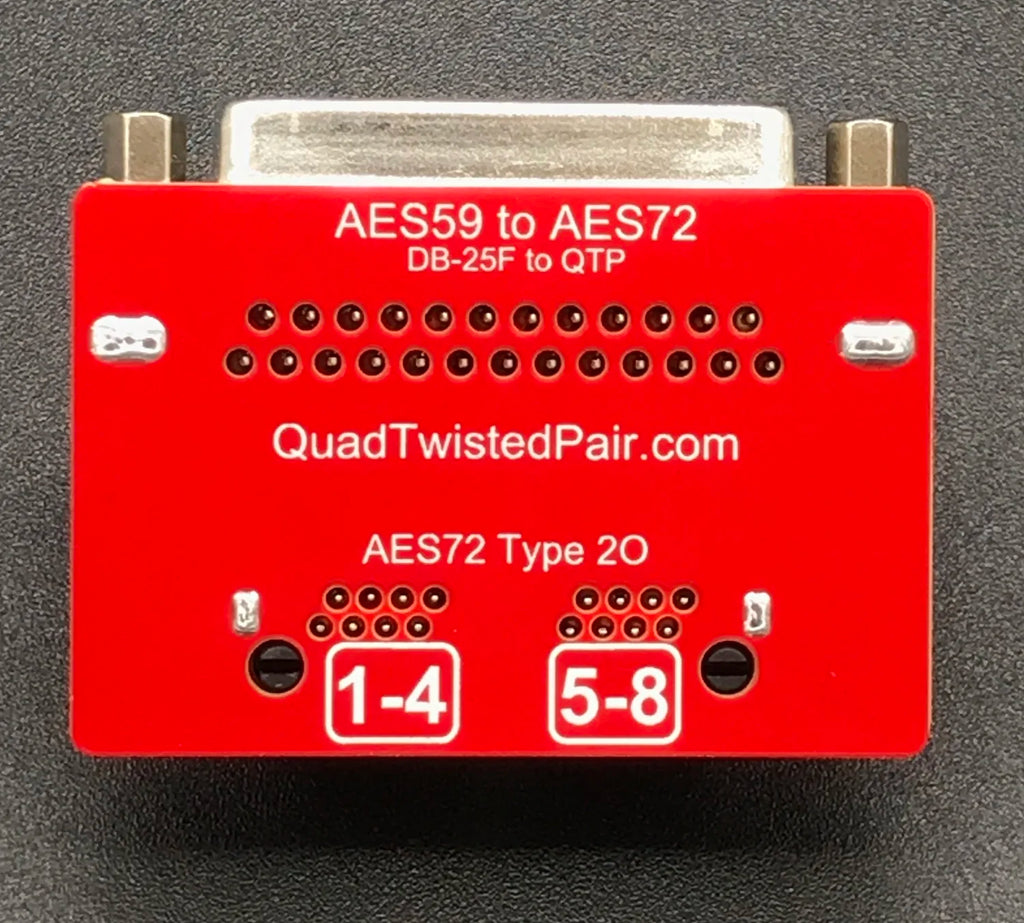

Double-PCB construction - Shields and prevents accidental contact with exposed signal contacts.
Configuration Descriptions
-
Used to connect to most racked equipment and devices.
-

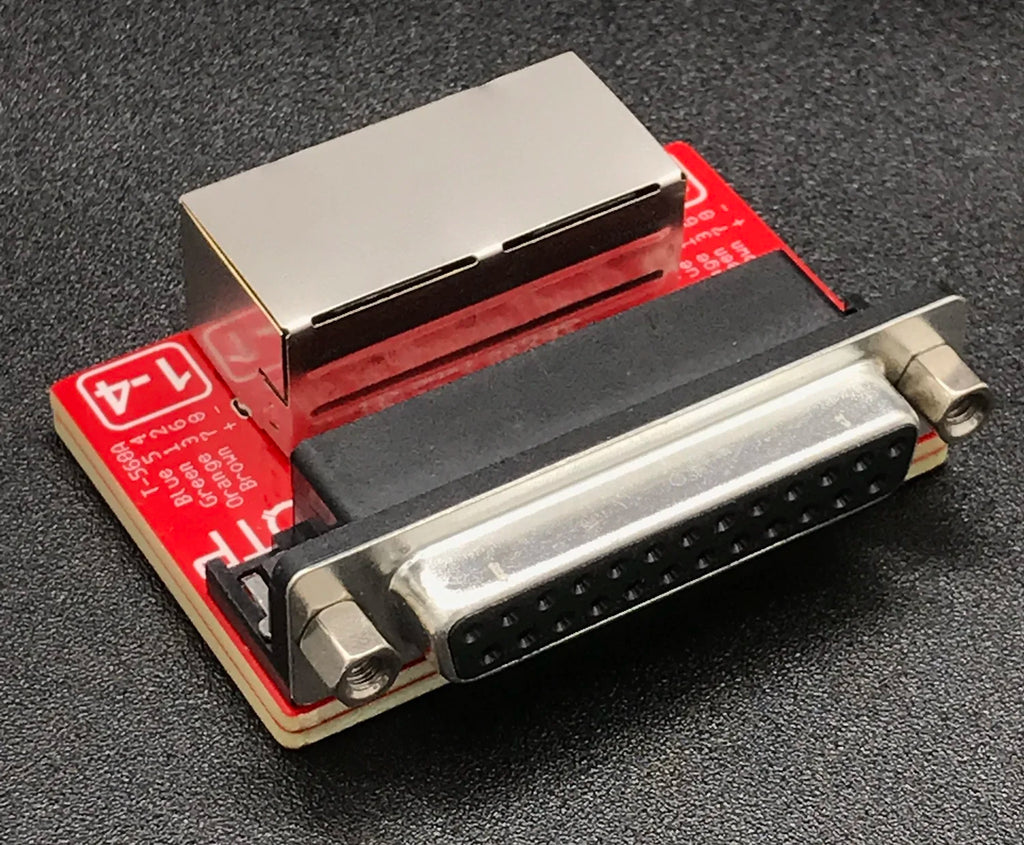

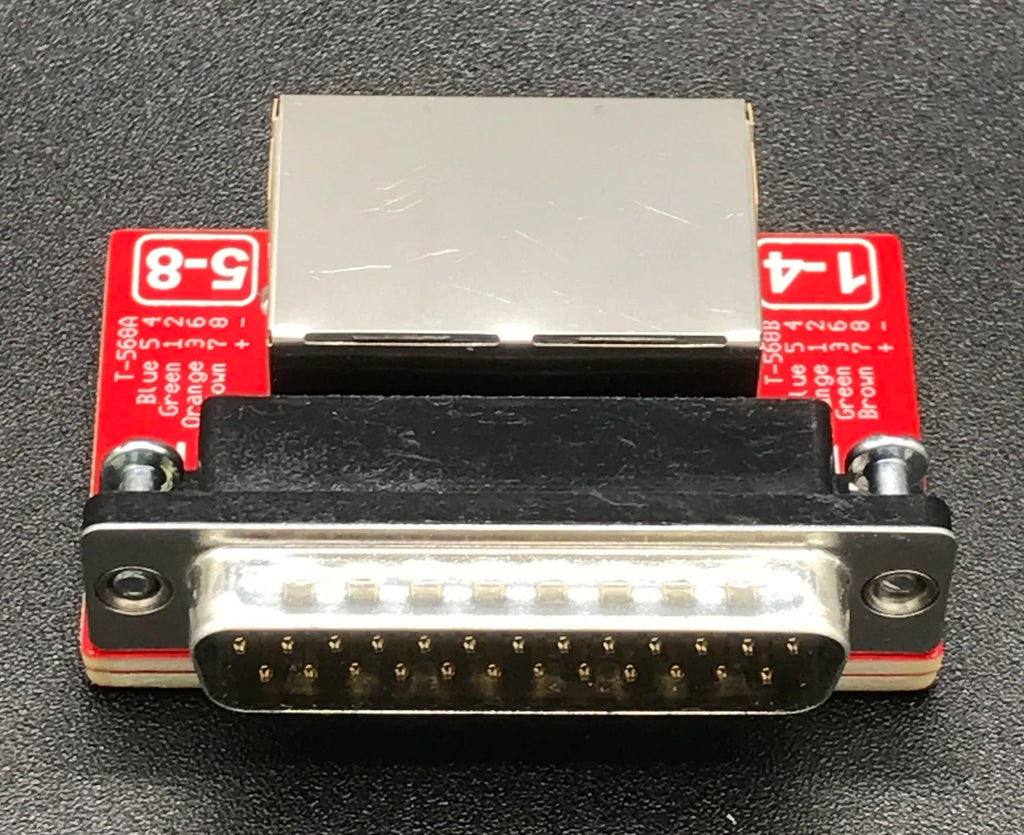

4-40 mounting screw attached to DSub connector.
-
AES-72 Type 2O is compatible with Sound Tools 'Audio Over Cat5'
